Diesel Engine driven welder - PERKINS 1103A - 33TG1 Engine - Three-phase asyncronous alternator - Three-phase generation 40 kVA - Single-phase generation 15 kVA - Max welding current: 600A

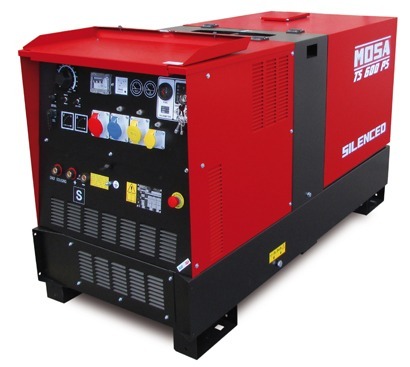

The engine-driven welder TS 600 PS/BC is a professional machine with electronic control of the welding current capable of delivering up to 600 A with a duty cycle of 60%.
Equipped with a Perkins water cooled diesel engine 1103 series and an asynchronous alternator and thanks to the lower engine speed (1500 rpm) it is suitable for continuous operation in all conditions and can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 40 kVA.
The TS 600 PS/BC is designed to satisfy the requirements of professional welding with direct current and can weld any kind of electrode (rutile, basic, cellulose) up to 8 mm in diameter. The characteristic BC (base current) is particularly suitable for vertical down pipe welding.
It is a super-silenced engine-driven welder with canopy. It can function simultaneously as a welder and as a three-phase and single-phase electrical generator.
Suitable for a wide range of applications, including large metal fabrications oil pipelines and construction sites.
In according with CE regulation
